NSX-T is VMware's software-defined networking and security layer for virtualised infrastructure. If you are trying to pin down what it really does, think of it as the layer that moves switching, routing, and firewall policy into software so the network follows the workload instead of forcing the workload to fit the physical fabric. In 2026, the current product name is NSX, but the older NSX-T label still appears in design docs, runbooks, and everyday conversations.
Key points at a glance
- NSX-T virtualises the network stack from Layer 2 through Layer 7.
- It uses logical segments, gateways, and distributed firewall policy instead of relying only on physical VLAN design.
- A production deployment is built around three planes: management, control, and data.
- The biggest value is microsegmentation and faster change control, not just virtual switching.
- It still depends on a healthy physical underlay, so it is not a shortcut around routing, MTU, or capacity planning.
What NSX-T actually does
I usually describe NSX-T as a network hypervisor for VMware environments. That sounds abstract, but the practical effect is straightforward: it lets you create logical networks that are not tied to a single switch, VLAN, or rack. A segment can span hosts, workloads can move more freely, and policy can follow the application rather than the IP address you happened to assign last quarter.
The part many teams miss is that NSX-T is not just about “virtual switching”. It also gives you logical routing, north-south connectivity to the physical network, and security controls that can sit directly on the workload path. That is why the platform became important in cloud-style private infrastructure: it removes a lot of the friction between application changes and network changes.There is also a naming detail worth getting right. VMware renamed NSX-T Data Center to NSX in the 4.x line, so when people still say NSX-T they usually mean the older name for the same architectural family. Once you see it that way, the architecture becomes much easier to understand.
How the platform is built

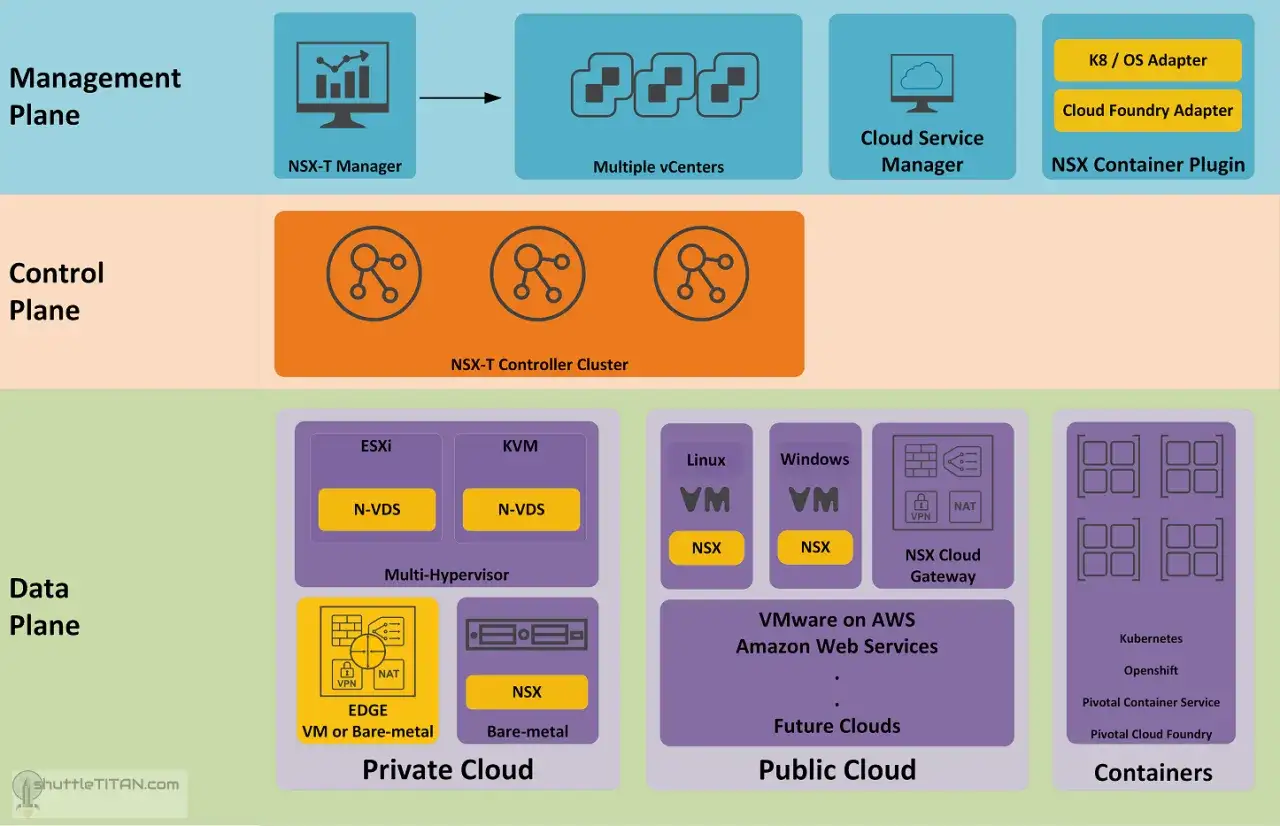

NSX works because it separates responsibility into three planes. That separation is not cosmetic; it is what lets the system scale and keep policy consistent across many hosts and workloads.
The management plane

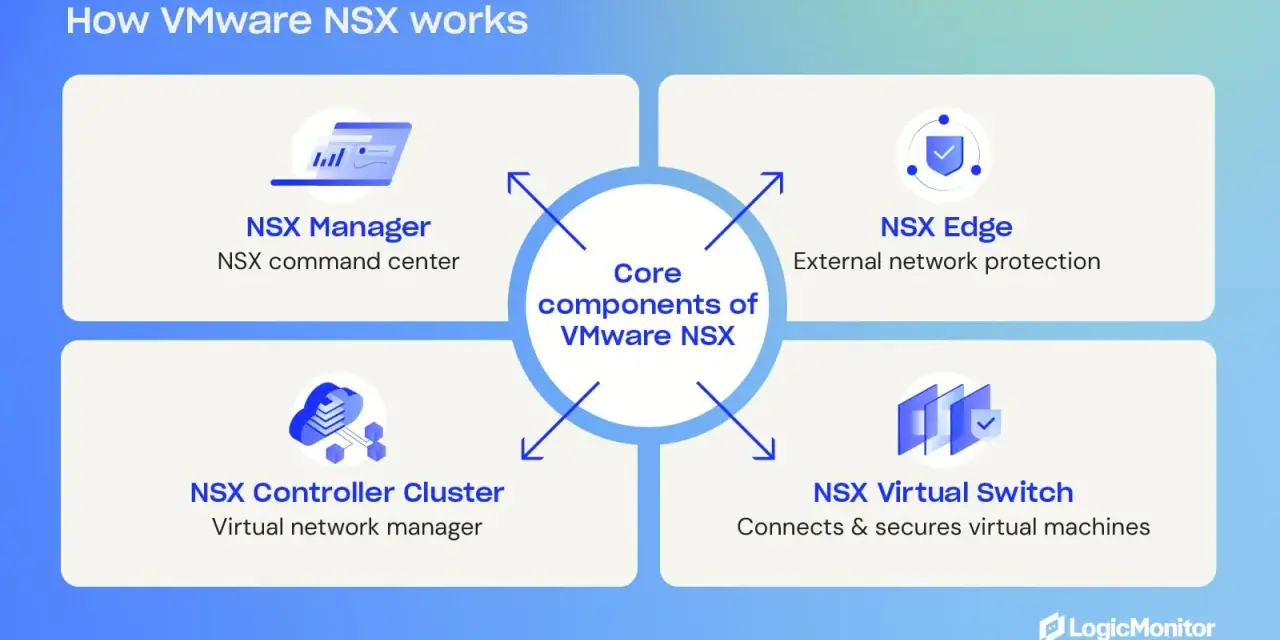

The management plane is where you define policy, build objects, and interact with the system. In production I would expect a three-node NSX Manager cluster rather than a single appliance, because this is the control layer for the whole environment and should be treated as highly available infrastructure. This is also where APIs, UI actions, and lifecycle operations are coordinated.
The control plane
The control plane distributes topology and state so that hosts know what networks exist, how they should behave, and where packets should be forwarded. You do not want every host guessing its own version of the truth. NSX avoids that by pushing a consistent control model to the places where traffic is actually handled.
The data plane
The data plane is where packets are forwarded. In NSX, that work happens on transport nodes, which are usually ESXi hosts and NSX Edge nodes. A useful detail here is that Edge nodes handle centralised services that cannot be fully pushed into the hypervisor layer. I think of them as the place where the virtual network meets heavier-duty routing and service functions.
Transport zones and segments sit on top of this structure. A transport zone defines where a logical network is allowed to exist, while a segment is the actual logical network that workloads connect to. That separation is what makes routing and gateway placement important, because not every piece of traffic belongs in the same place.
How routing and gateways work
Once the planes are clear, the next question is where traffic enters and exits the NSX domain. That is where the gateway model matters. In practice, NSX uses Tier-1 and Tier-0 gateways to separate application routing from external connectivity.
- Tier-1 gateways usually sit closest to application segments and handle east-west traffic between internal networks.
- Tier-0 gateways connect the NSX environment to the physical network and handle north-south movement.
- NSX Edge nodes provide the services and routing capacity that should not live directly on every hypervisor.
- Transport zones decide which hosts can participate in a network, which is why they matter during design rather than after the fact.
In a simple mental model, Tier-1 is where the application lives and Tier-0 is where that application world meets the outside world. I have seen teams blur the two, then wonder why troubleshooting becomes slow and policy gets messy. The model is cleaner when you treat each layer as having a specific job instead of expecting one gateway to do everything.
This routing structure is also why NSX is more than a security tool. It is a full network design platform, and once you understand where traffic enters and leaves, the security model makes much more sense.
Why its security model is different
The standout feature for most organisations is the distributed firewall. Instead of forcing all security through one or two perimeter devices, NSX can enforce rules much closer to the workload, including traffic that never leaves the host. That matters because a lot of modern risk lives in east-west movement, not just at the internet edge.
This is where microsegmentation becomes real. You can group workloads by role, app tier, tags, or policy boundaries and then apply rules to those groups rather than chasing individual IP addresses. In a disciplined environment, that is a major improvement over ad hoc firewall exceptions. In a sloppy environment, it becomes rule sprawl with better branding, so the governance side matters as much as the feature itself.
I would not treat NSX as a magic zero-trust switch. It gives you the mechanism, not the operating discipline. You still need sane naming, clean group design, a change process, and a clear answer to who owns policy. If those pieces are weak, the security gains shrink quickly.
That is also why NSX often appeals to teams that care about auditability and lateral-movement risk. The controls sit closer to the workload, so you can express security intent in software instead of relying only on perimeter assumptions. That is a meaningful shift in how the network is defended.
How it compares with VLAN-based designs
The easiest way to understand NSX is to compare it with a traditional VLAN-centric model. I do not think one is automatically better than the other; they solve different problems. But the contrast makes the trade-offs obvious.
| Aspect | Traditional VLAN design | NSX-T approach |
|---|---|---|
| Network definition | Built around physical switches, VLANs, and static topology | Built around logical segments that span hosts and support software-defined policy |
| Security placement | Often concentrated at the perimeter or on dedicated appliances | Distributed closer to the workload through the hypervisor and gateways |
| Change speed | Usually slower, because every change can touch physical configuration | Usually faster, because policy and network objects are software-defined |
| East-west visibility | Can be limited unless you add more tooling | Much stronger, especially for microsegmentation and lateral traffic control |
| Operational trade-off | Simpler for small, stable environments | More powerful, but also more complex and more demanding to operate well |
The practical lesson is simple: if you are running a small, stable environment with very little application churn, NSX can be more platform than you need. If you are dealing with frequent change, strict segmentation, or a lot of VMware workloads that need to move without network redesign, the software-defined model starts to earn its keep. That is the point where the operational overhead becomes worth paying.
When I would choose it and when I would not
I would reach for NSX-T when the network has become a bottleneck for delivery or security. That usually means one or more of these situations:
- You need microsegmentation for regulated or sensitive workloads.
- You have a large VMware estate and app teams change network requirements often.
- You want policy-driven routing and security without constantly reworking the physical fabric.
- You need a cleaner way to separate tenant, application, or environment boundaries.
I would be more cautious when the environment is small, the topology is simple, or the team does not have the appetite for an additional operational layer. NSX is powerful, but power comes with design discipline. You still need a clean underlay, predictable MTU behaviour, stable routing, and enough team maturity to manage policy without creating a maintenance burden.
That is why I do not see NSX as a universal answer. I see it as a serious answer for environments where network control, segmentation, and agility matter enough to justify the complexity.
The deployment questions that decide whether it pays off
Before I would treat NSX as production-ready, I would want the following questions answered clearly:
- Is the physical underlay stable, redundant, and documented, including MTU and routing?
- Do we have a three-node NSX Manager cluster and a clear backup and restore process?
- Are Edge nodes sized for the real north-south and centralised-service load?
- Have we standardised tags, groups, and naming so policy will remain understandable six months from now?
- Do we know who owns upgrades, troubleshooting, and policy changes when something breaks?
If those basics are in place, NSX gives you a much cleaner control model than a pile of isolated VLANs and perimeter appliances. If they are not, the platform can feel heavy very quickly. That is the real answer to the question: it is a software-defined network and security layer that changes both the design and the operating model, not just the way packets move.
