This network virtualization overview focuses on how logical networks are created on top of physical infrastructure, why that matters for modern data centres and hybrid estates, and what usually breaks when the design is rushed. I will keep it practical: the building blocks, the creation process, the security impact, and the trade-offs that matter once the system is live. For teams that need faster change without losing control, the real value is not abstraction for its own sake, but a network that is easier to segment, move, and manage.

What network virtualisation actually changes

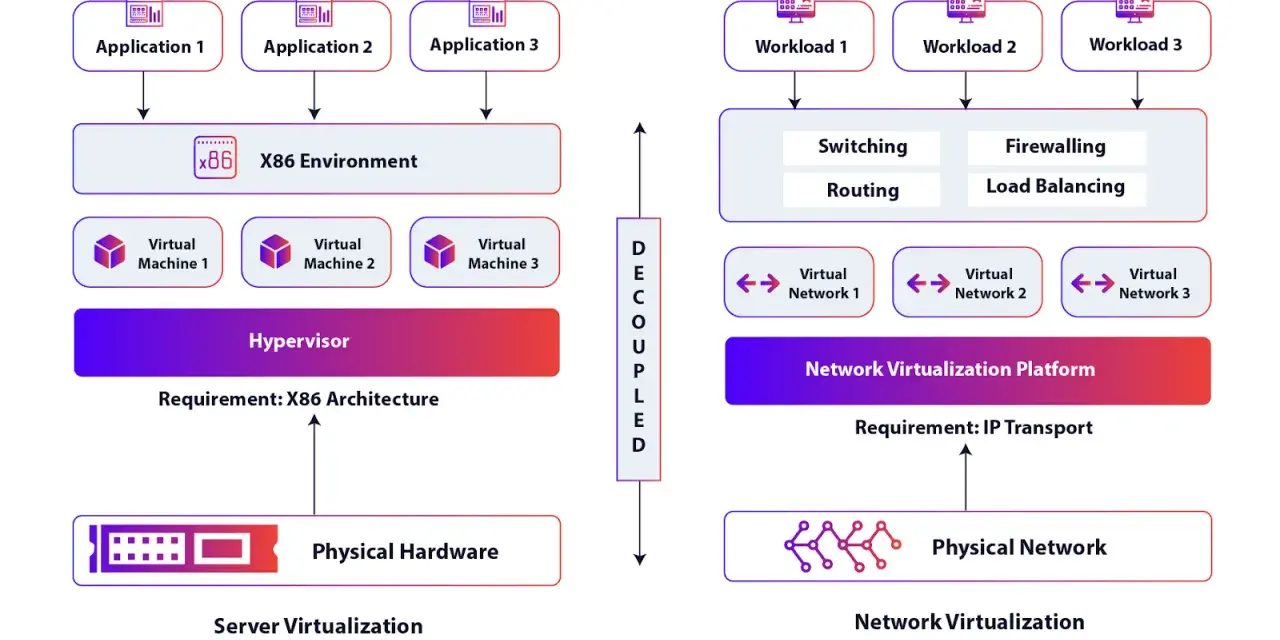

At a practical level, network virtualisation changes one thing more than anything else: it stops the physical topology from dictating every logical boundary. Instead of wiring applications, tenants, or departments directly into separate physical segments, I can define those segments in software and map them onto the same fabric. That gives me logical isolation without physical duplication, which is why the model scales better in shared environments.

It is easy to oversimplify this and say it is just “more VLANs”, but that misses the point. VLANs are one tool; network virtualisation is the broader design idea. In that wider model, the forwarding path, segmentation policy, and sometimes even the network services themselves are abstracted away from the hardware. That is also why people often confuse it with network functions virtualisation, which is related but different: NFV moves functions such as firewalls, load balancers, or routers into software, while network virtualisation focuses on how the network itself is segmented and presented.

I usually think of it as a shift from hardware-centred design to policy-centred design. Once that shift is clear, the next question is how the pieces are actually assembled.

How virtual network resources are built

The cleanest way to build virtual network resources is to start with a stable physical foundation and then layer the abstraction on top. In other words, the underlay carries the traffic reliably, and the overlay gives each workload or tenant the network view it needs. If the underlay is weak, the overlay will not save you; it will just make the failure harder to see.

1. Build a simple, resilient underlay. I want a routed IP fabric with enough bandwidth, predictable latency, and redundant paths. In data centres, that often means a leaf-spine layout because equal-cost multipath routing gives the fabric more usable paths.
2. Define the segmentation model. Decide whether you need tenant isolation, application-tier separation, development and production boundaries, or all three. This is where naming and policy discipline matter, because the software will happily let you create chaos faster than a switch ever could.
3. Choose the overlay mechanism. VXLAN is common because it encapsulates frames across the IP fabric and creates a much larger logical segment space than classic VLANs. That is why it is so common in multi-tenant data centres and hybrid environments.
4. Map workloads and gateways. Virtual machines, containers, or bare-metal endpoints need a way to attach to the logical network. Edge devices such as virtual switches, distributed routers, or tunnel endpoints terminate the overlay and move traffic in and out of it.
5. Apply routing and policy. This is where the design becomes operational rather than theoretical. Security groups, ACLs, micro-segmentation rules, and distributed routing all need to reflect the application model, not just the physical site layout.
6. Test failure modes early. I always check MTU, route convergence, tunnel health, and whether the monitoring stack can trace a packet across both layers. That saves a lot of painful guesswork later.

In a UK enterprise, that might mean a routed core in one data centre, overlay segments for different business units, and a policy layer that keeps development, production, and third-party access separated without needing separate physical networks. The specific platform changes, but the logic stays the same: build a dependable fabric first, then make the network behave like software.

That separation is also what makes the control plane easier to reason about, which is the point of the next section.

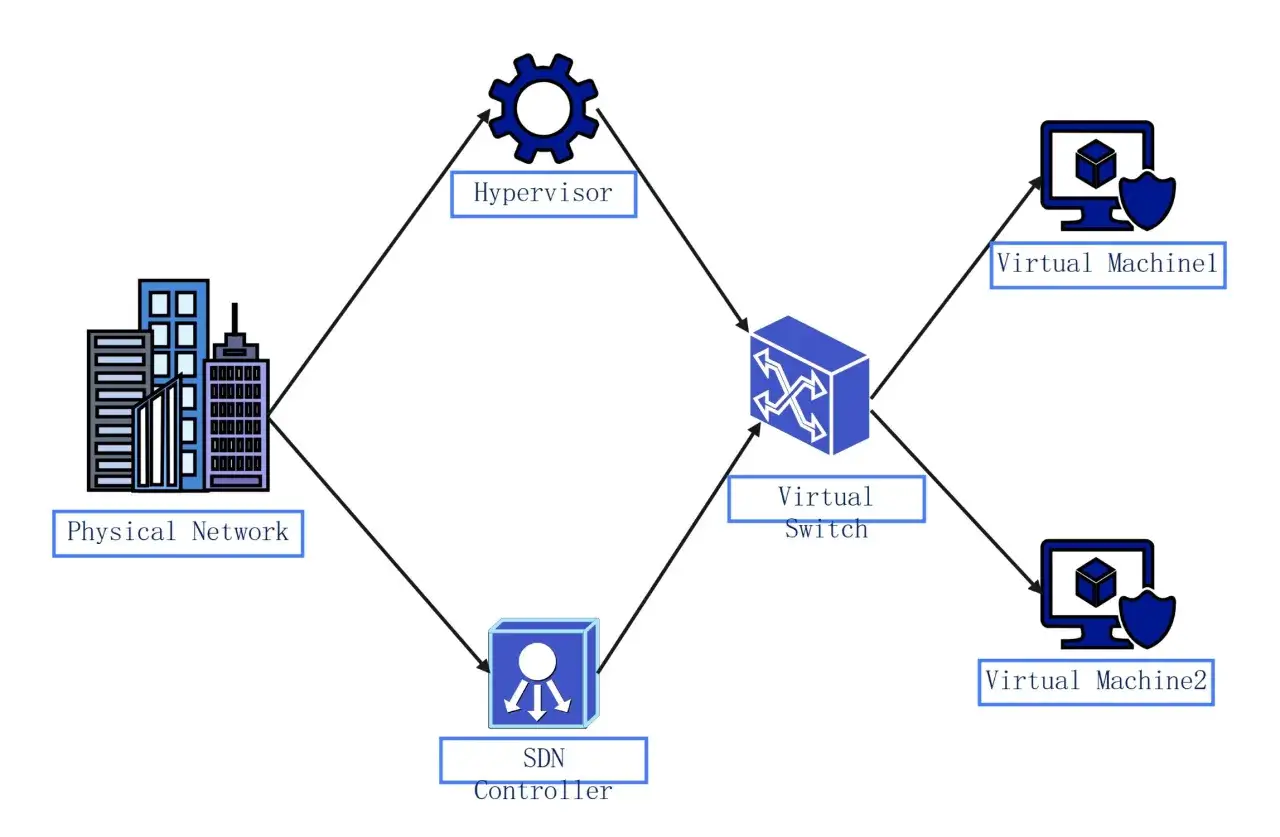

Where the underlay, overlay, SDN and NFV fit

These terms are often bundled together, but they do different jobs. If I were explaining the stack to a new engineer, I would keep it blunt: the underlay moves packets, the overlay creates logical networks, SDN decides policy and forwarding behaviour, and NFV moves network appliances into software. Mixing them up leads to bad design decisions, especially when teams expect one layer to compensate for another.

The important detail in VXLAN-based designs is that the overlay rides on top of the underlay instead of replacing it. Tunnel endpoints at the edge, usually referred to as VTEPs, handle encapsulation and decapsulation. That lets the fabric stay generic while the logical network remains specific to each tenant or application domain.

If you only remember one distinction, make it this: SDN changes how the network is controlled, while overlay networking changes how it is represented. That difference is exactly why security and segmentation can improve so much when the design is done well.

Why security and segmentation improve

Virtual network design tends to pay its biggest dividend in security, not because it is magical, but because it makes segmentation easier to apply consistently. Instead of depending on where a server happens to be plugged in, I can define boundaries around workloads, environments, or business units. That reduces the blast radius when something is compromised and makes east-west traffic much easier to govern.

For regulated environments, that matters. In sectors such as finance, healthcare, and public services, the question is rarely whether you can connect everything together; it is whether you can prove that sensitive traffic stayed separated, logged, and policy-controlled. A virtualised network makes that simpler, but only if naming, tagging, and rule ownership are disciplined.

• Smaller blast radius. A compromised workload should not automatically see the rest of the estate.
• Cleaner policy boundaries. Security rules map to logical application tiers instead of switch ports and patch panels.
• Better tenant separation. Shared infrastructure becomes more practical when each tenant sees only its own segment.
• More usable zero-trust patterns. Identity and network policy can be combined without forcing a redesign of the physical fabric.

There is still a trap here: segmentation is not the same as security. If policy is too loose, if logging is poor, or if the change process is sloppy, a virtual network can become a more elegant way to expose the same mistakes. That is why the operational fit matters just as much as the design.

When it is worth using in modern infrastructure

I reach for network virtualisation when the physical layout is no longer the right way to express the business problem. That usually happens when the estate becomes multi-tenant, hybrid, or too dynamic for manual segmentation to keep up. It is especially useful when workloads need to move between on-premises sites, private cloud, and public cloud without rewriting their network assumptions every time.

Typical scenarios include:

• Data centre consolidation. One shared fabric can host multiple isolated environments without building separate physical networks for each one.
• Hybrid cloud connectivity. Workloads can keep consistent network identities across on-premises and cloud platforms.
• Internal platform teams. Different product teams can get self-service network segments without waiting for physical changes.
• Development and testing. Temporary environments become easier to create, destroy, and clone.
• Disaster recovery and mobility. Moving a workload is less painful when the logical network is not tied to a single rack or site.

For a UK retailer, for example, the model can make a lot of sense if the same application stack has to run across a primary site, a recovery site, and cloud burst capacity. For a small office with a static topology and little automation, I would usually avoid heavy overlay design unless there is a clear need for segmentation or scale. The value is real, but so is the complexity.

That trade-off leads directly to the part many teams underestimate: what the model costs operationally.

The trade-offs that still matter

Virtual networking solves real problems, but it also adds layers that have to be understood, monitored, and maintained. The biggest mistake I see is treating the overlay as if it removes the need for good network engineering. It does not. It only moves some of that engineering into software and policy.

• Troubleshooting gets harder. A failure can live in the host, overlay, underlay, tunnel endpoint, or policy engine.
• MTU planning matters. Encapsulation adds overhead, so packet size and fragmentation need to be checked early.
• The control plane needs design. Static shortcuts work for a demo, but they age badly once the environment starts changing faster.
• Observability becomes mandatory. Flow logs, telemetry, and consistent naming are not optional if you want to diagnose traffic across layers.
• Skills and tooling have to match the architecture. A team comfortable with switch ports may still struggle with overlays, policies, and distributed gateways.
• Underlay mistakes are amplified. A brittle physical fabric makes every logical network look unreliable.

VXLAN-style overlays also introduce a scale-versus-simplicity choice. They can support up to 16 million logical segments, which is far beyond the 4,094 usable VLAN IDs most people start with, but scale only helps if governance keeps pace. Once teams stop knowing what a segment exists for, the extra headroom becomes clutter instead of capability.

So the real question is not whether the technology can scale, but whether your operating model can.

The baseline I would use for a sane deployment

If I were setting this up from scratch, I would keep the first version intentionally boring. A good virtual network design is not the one with the most features; it is the one the next engineer can understand quickly under pressure. That means starting with a simple underlay, a clear segmentation policy, and a small number of well-named logical networks.

• Keep the underlay routed and resilient. Do not ask the physical fabric to fix logical complexity.
• Use overlays only where they solve a real problem. Scale, mobility, and tenant separation are valid reasons; fashion is not.
• Standardise policy and naming early. Ambiguity multiplies faster than traffic does.
• Monitor across layers. If you cannot trace a flow end to end, you do not really control the network.
• Document the operating assumptions. MTU, gateways, security boundaries, and ownership should be obvious to the whole team.

That is the version of virtualisation I trust most: small enough to operate cleanly, flexible enough to grow, and explicit enough that security and infrastructure teams can work from the same model without guessing.
