X.509 certificates become much easier to read once you strip them down to the fields that actually matter. This article explains which attributes are required, which ones are optional, and how to recognise the correct multiple-choice answer without getting distracted by modern extensions or sloppy wording. I also cover the common traps, because most wrong answers come from mixing up the core certificate structure with add-ons that are useful but not mandatory.
The core X.509 fields are the ones that bind identity to a public key

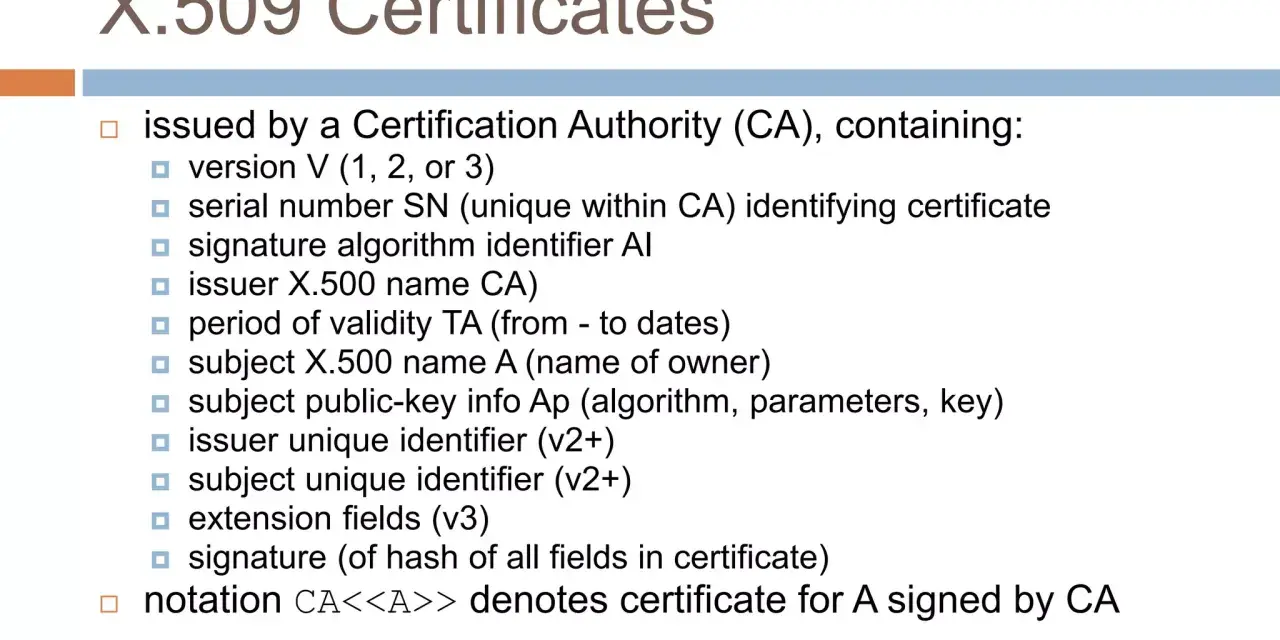

- The required core items are the serial number, signature algorithm, issuer name, validity period, subject name, and subject public key info.
- The certificate is digitally signed by the issuer, and that signature protects the data inside the certificate.
- Version 3, unique identifiers, and most policy or usage details are optional or extension-based.
- If an option lists common name, public key, and validity period, the intended answer is often the one that includes all of them.
- In real deployments, extensions such as SAN and key usage are common, but they do not replace the core fields.
The answer exam questions usually want
When I see this kind of question, I look for the choice that includes subject, issuer, validity period, serial number, and subject public key information. RFC 5280 treats those as the essential X.509 certificate elements, and NIST describes them as the mandatory fields most people should know. If the option also mentions the signature algorithm, that is another strong signal, because the certificate structure includes it as part of the signed record.
In plain English, the right choice is the one that describes the certificate’s identity binding, not the one that talks only about usage features or revocation extras. That distinction matters because exam writers often hide the correct answer inside wording that sounds broader than it is.
From here, the useful move is to separate the real certificate skeleton from everything that can be added on top of it.
The fields that make an X.509 certificate usable
The standard does not treat an X.509 certificate as a random bundle of attributes. It is a structured object with a fixed core, and each core field has a clear job in trust validation.
| Field | What it does | Why it matters |
|---|---|---|
| Serial number | Unique number assigned by the issuer | Helps identify one certificate unambiguously, especially for revocation and auditing |
| Signature algorithm | Names the algorithm used to sign the certificate | Tells a verifier how to validate the issuer’s signature |
| Issuer name | Identifies the certificate authority that issued it | Shows who vouches for the certificate |
| Validity period | Contains notBefore and notAfter | Defines when the certificate can be trusted as valid |
| Subject name | Identifies the entity bound to the certificate | Connects the public key to a person, service, device, or organisation |
| SubjectPublicKeyInfo | Stores the public key and its algorithm identifier | Lets others verify signatures or encrypt data for the subject |
RFC 5280 says the Certificate is a sequence of three required fields, and the TBSCertificate underneath it carries the subject, issuer, validity, and public key information. The important detail is that the certificate contains the public key, not the private key. That sounds obvious, but it is exactly the kind of detail test questions try to blur.
Once that skeleton is clear, the next source of confusion is the stuff that sits beside it rather than inside it.
What is optional and why it confuses people
Modern certificates usually look fuller than the minimum standard, which is why people often overestimate what is mandatory. The base X.509 structure leaves room for optional elements, and that is where most exam distractors come from.
Version 3 is common, but it is not the whole answer
X.509 version 3 is the norm in modern deployments because it supports extensions, but the version field itself is not the same thing as a required identity attribute. Version 1 is the original syntax, and version 3 becomes relevant when extensions are present. In practice, I would never pick “version 3” alone as the answer to a question about required certificate attributes.
Common name is part of the subject, not a separate certificate type
The common name, or CN, is a familiar attribute inside the subject distinguished name, but the standard speaks more broadly about the subject. That difference matters. A quiz may say “common name” because it is the part people remember from browser certificates, but the standard is really about the subject identity as a whole. In some modern profiles, identity can even live primarily in subjectAltName, which is another reason CN by itself is a weak way to describe the required fields.
Read Also: TLS 1.2 Vulnerability - Spot & Fix Weaknesses Now
Extensions are useful, but they are add-ons
Subject Alternative Name, Key Usage, Extended Key Usage, Basic Constraints, Authority Information Access, and CRL Distribution Points are all practical and often critical in real deployments. They are not, however, the basic fields that define the certificate’s core identity binding. If a choice focuses only on those extensions, it is usually describing a v3 certificate feature rather than the required X.509 core.
The signature pair also trips people up. The signature algorithm identifier tells you which algorithm the CA used; the signature value is the actual cryptographic proof over the certificate data. Both are important, but they serve different roles. When an option mentions only one of them, read it carefully before assuming it is the full answer.
That is the part exam writers rely on, because the wrong choices often look plausible at a glance.
How I eliminate wrong options in seconds
My rule of thumb is simple: if the option does not bind an identity to a public key, it is probably not the right answer. I narrow it down by checking whether the choice contains the certificate’s identity, validity window, and key material, then I see whether any extra terms are just extensions dressed up as essentials.
- Reject options that mention only revocation or status mechanisms, such as OCSP or CRL distribution points.
- Reject options that mention only extensions, because extensions usually support the certificate rather than define its core.
- Prefer the option that includes issuer, subject, validity, serial number, and public key information.
- Read “encryption key” as sloppy shorthand for the public key, not the private key, which never belongs in the certificate.
- If the choices list several valid core items separately, the intended answer may be “all of these” because each item maps to part of the certificate structure.
This is also where a lot of study guides oversimplify the topic. They collapse the standard into a few memorised buzzwords, but the better approach is to recognise the shape of the certificate and eliminate anything that does not fit that shape.
That same habit pays off in production systems too, because the fields that matter in an exam are the fields that make trust work in the real world.
Why these fields matter in real security work
X.509 is not just a certification topic; it is the backbone of TLS, S/MIME, VPN identity, device authentication, and a lot of internal PKI work. The issuer, subject, validity period, and public key are what allow a relying party to decide whether a certificate should be trusted and whether it still belongs in the current trust path.
- Issuer and serial number make revocation and auditing practical.
- Subject and public key bind a real identity to a cryptographic key pair.
- Validity dates limit how long a certificate can be accepted.
- Signature algorithm and signature value prove that the certificate has not been altered since the CA issued it.
- Extensions tell clients how the certificate should be used, but they do not replace the core fields.
One subtle point I would not ignore: the subject name can be a little more nuanced than beginners expect. In some profiles, the visible identity may sit partly in subjectAltName rather than only in the subject DN, which is why the exact wording of the question matters. Even then, the exam-level answer usually still centres on the core certificate fields, not on the optional profile details.
Once you think in terms of trust binding instead of memorised labels, X.509 questions become much easier to read.
The checklist I use when an X.509 question appears
When I want the quickest reliable answer, I run through a short mental checklist:
- Does the option mention the subject or common name?
- Does it include the issuer?
- Does it include the validity window?
- Does it include the serial number?
- Does it include the public key or SubjectPublicKeyInfo?
- Does it rely on extensions that are useful but not foundational?
If the first five items are present, the answer is usually the one you want. If the option leans mainly on SAN, key usage, revocation data, or other extensions, I treat it as a distractor unless the question is explicitly asking about v3 extensions. That is the cleanest way I know to answer the certificate question accurately and avoid overthinking it.
