NSX vs NSX-T - The 2026 Platform Choice Explained

The nsx vs nsx-t question is really about platform evolution, not a head-to-head between two equal choices. One branch is the older, vSphere-centric stack many teams are trying to retire; the other is the architecture VMware carried forward into the current NSX line. If you are responsible for network infrastructure, the useful questions are support status, routing and security design, migration effort, and whether the platform still fits how modern private cloud environments are built.

NSX for vSphere was built around the older VMware operating model, with a strong dependency on vSphere and the workflows administrators already knew. NSX-T was designed to break that dependency, widen the platform’s use cases, and support more flexible topologies across private cloud, hybrid cloud, and multi-site environments. By 2026, that distinction matters more than feature checklists, because one of these platforms is the continuation of VMware’s network virtualization strategy and the other is a retired branch of it.

That shift shows up first in the architecture, and that is where most design decisions start to change.

The architectural shift that changed the design conversation

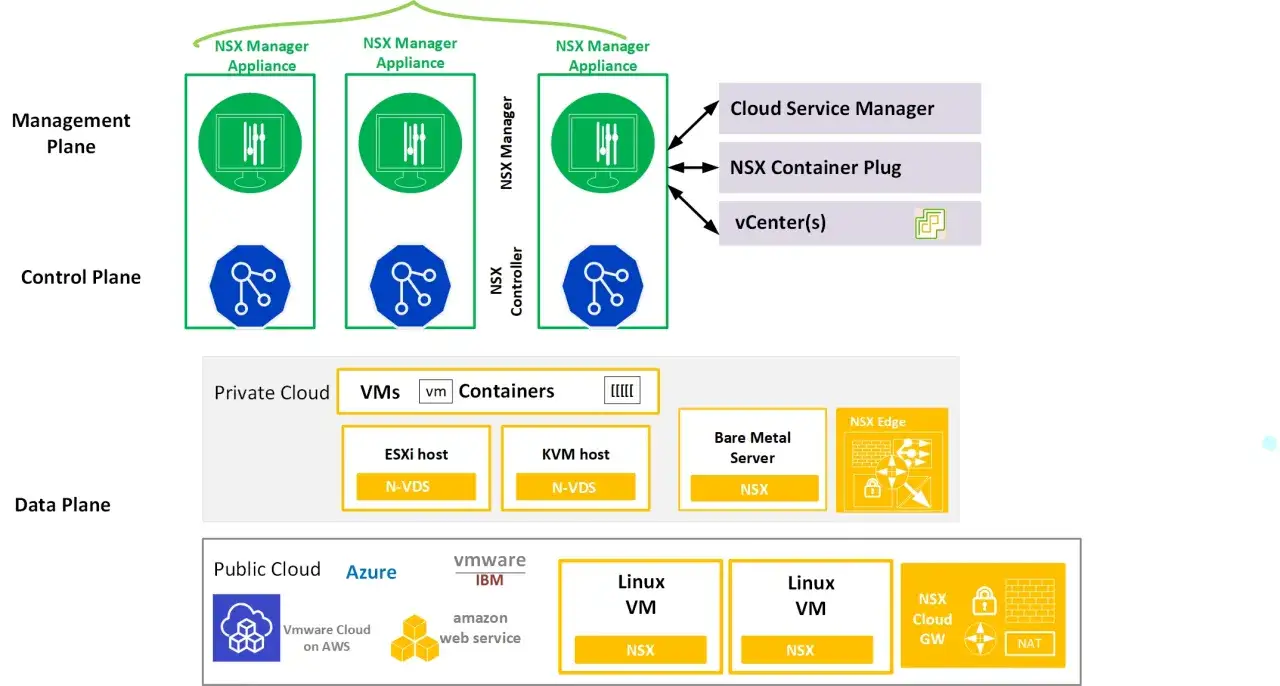

I usually explain this part in plain terms: NSX-V was tightly tied to the old vSphere networking model, while NSX-T was built around a cleaner separation of responsibilities. Current NSX uses distinct management, control, and data planes, which makes the platform easier to reason about when you are dealing with larger estates, multiple sites, or mixed workloads.

The difference is not academic. It affects how you think about routing, segmentation, transport, and automation. NSX-T introduced the Tier-0 and Tier-1 gateway model, transport zones, and policy objects that map more cleanly to modern network architecture. That means the platform is less about recreating VLAN habits in software and more about expressing intent in a way the infrastructure can enforce consistently.

That architecture is also why NSX-T became the basis for the current VMware NSX line rather than remaining a separate experiment. Once you understand that, the security model becomes the next obvious question.

Security and segmentation are where current NSX earns its place

For many teams, the real reason to use NSX is not switching. It is segmentation. If you are building a private cloud for multiple business units, or you are running regulated workloads where east-west traffic must be controlled tightly, distributed firewalling and policy-based micro-segmentation can do more for risk reduction than another perimeter appliance ever will.

NSX-T improved that story by making policy easier to express and manage at scale. In practical terms, I find that current NSX fits environments where the security team wants rules that follow workloads, not racks or subnets. It also gives you a better foundation for layered controls such as gateway firewalling, workload-level policy, and newer threat-detection capabilities added in later releases.

• Micro-segmentation works better when application tiers are mapped as policy objects instead of buried in ad hoc firewall rules.
• Distributed enforcement reduces hair-pinning, which matters when east-west traffic is heavy.
• Policy-driven control makes audits and change reviews easier to defend, especially in regulated UK environments.
• Multi-site consistency becomes more realistic when the same policy model can be applied across domains.
• Operational clarity improves because teams spend less time reverse-engineering old network constructs.

The common mistake is to treat NSX as if it were just a firewall with overlays. That mindset leads to overengineering. The better approach is to decide where segmentation actually adds value, then use NSX where the policy boundary matters. Once that is clear, support and operations become the next hard constraint.

Operations and lifecycle in 2026 are not a small detail

This is where the comparison becomes brutally one-sided. NSX for vSphere reached end of general support on January 16, 2022, and end of technical guidance on January 16, 2023. In 2026, that makes NSX-V a legacy platform with no serious place in a new design. If it is still running in production, it is there because the migration has not been completed yet, not because it is a strategic choice.

Current NSX is the active line, and its operational model reflects that. Production deployments should use a three-node NSX Manager cluster, which gives you redundancy for the management and control planes. That is not a nice-to-have detail; it is the baseline I would expect in any environment that needs predictable availability.

• Support status is the first filter, because unsupported infrastructure creates risk faster than it creates savings.
• Cluster design matters, because management-plane resilience is part of the platform, not an add-on.
• Upgrade planning is more structured in current NSX, but it still demands version checks across vCenter, ESXi, and host-switch configuration.
• Host networking changes can appear during upgrades from older NSX-T releases, especially where legacy host-switch designs are still present.

If you are trying to defend a platform decision to operations, the current NSX line is the one you can justify. NSX-V is the one you need to remove. That leads naturally to the migration itself, which is where most projects either stay controlled or become expensive.

Migration planning is where the real work happens

I would not describe moving from NSX-V to current NSX as a simple upgrade. It is a migration project with architecture decisions attached to it. VMware’s migration tooling helps, but it does not remove the need to understand dependencies, sequence, and cutover risk.

1. Inventory every logical switch, firewall rule, edge service, route, and IP pool you actually use.
2. Confirm compatibility across vCenter, ESXi, and the NSX release you want to land on.
3. Map old constructs to the current model, especially around segments, Tier-1 gateways, and Tier-0 routing.
4. Check the physical network, including uplinks, MTU, routing adjacencies, and any ToR dependencies.
5. Test security policy translation before you cut over live workloads.
6. Plan rollback and maintenance windows with real business impact in mind, not just technical convenience.

The Migration Coordinator can automate a lot of the translation, and that is valuable, but it does not make the project trivial. The teams that succeed are the ones that treat this as a controlled redesign with a migration assistant, not as a magical button. In practice, that means the network team, security team, and virtualization team all need a shared view of what is changing and what is not.

That also explains why some migrations stall: the software is ready before the physical network and the operating model are ready. When that happens, the bottleneck is usually process, not tooling.

Which platform fits which environment

If I strip the comparison down to decision-making, the answer is straightforward.

• Existing NSX-V estate means plan a migration to current NSX. I would not invest further in the legacy platform.
• New private-cloud build means choose current NSX if you need segmentation, routing control, or tenant separation.
• Hybrid or multi-site VMware design means current NSX is the platform that fits the architecture better.
• Simple vSphere environment with basic VLAN networking often does not need NSX at all.
• UK enterprises with compliance pressure usually benefit from the auditability and policy consistency of current NSX, especially when workloads span a primary site and a DR site.

The last point is important. Not every environment needs a full network virtualization stack. If you only need a few segments and some basic controls, native vSphere networking may be cleaner and cheaper. NSX is strongest when the network itself is part of the security and automation strategy, not just plumbing under the VMs.

That is the real filter: use current NSX when the network needs to behave like software infrastructure, not just like a switched fabric. If you do not need that, it is better to keep the design simpler.

The decision I would make for a 2026 network refresh

If the choice is between NSX-V and current NSX, my answer is simple: I would plan for current NSX or for a clean exit from NSX entirely. NSX-V is past its support window, and leaving it in place only turns a migration problem into a technical-debt problem with a shorter fuse.

For a new design, I would start by asking three questions: do you need distributed security, do you need overlay-based segmentation, and do you need a policy model that scales across sites or teams? If the answer is yes to any of those, current NSX is the platform that matches the requirement. If the answer is no, I would look hard at whether native vSphere networking is enough, because the simplest secure design is often the one that survives operational pressure best.

That is the practical answer to nsx vs nsx-t in 2026: one is the legacy path to retire, and the other is the platform to evaluate for future-facing network infrastructure. The rest of the work is execution, especially around inventory, physical network readiness, and a migration plan that respects downtime, compliance, and the way your estate actually behaves.
