An active tap is a powered inline device that copies live network traffic for monitoring while keeping the production link moving. In observability work, that matters when packet evidence has to be reliable enough for troubleshooting, threat detection, or audit work, not just convenient for an occasional capture. I usually treat it as the bridge between raw traffic and the rest of the stack: logs, metrics, traces, IDS, NDR, and forensic analysis.
The decision comes down to signal control, capture fidelity, and failure behaviour
- Use a powered inline tap when you need bypass, regeneration, or support for copper and low-signal links.
- Use a passive tap when transparency and simplicity matter more than extra features.
- Use SPAN when speed of setup matters more than perfect packet fidelity.
- Size the monitoring path for aggregate traffic, not just the headline link speed.
- In UK hybrid estates, plan for maintenance windows, change control, and regulated workloads.
How a powered tap fits into a modern monitoring path

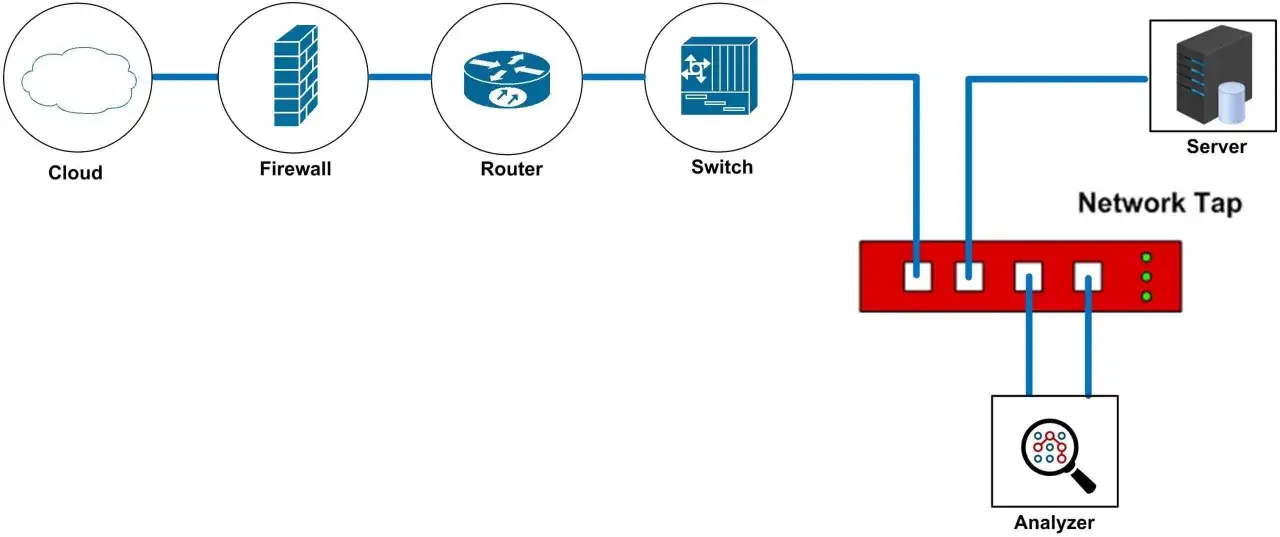

The easiest way to picture it is as a controlled splice in the link. Two endpoints still talk to each other, but the tap copies the traffic to one or more monitoring ports so tools can inspect it without sitting in the data path. In better designs, it can also regenerate the signal, aggregate copies for multiple tools, or fail open so the network keeps flowing if power is lost.
That makes it more than a capture accessory. It becomes the first, physical layer of packet-level observability, especially when you need a clean feed for security tooling, performance analysis, or compliance capture. At scale, that feed often lands in a packet broker, which filters, aggregates, and steers packets to the right tool chain. Once you see the copy as the raw material for observability, the next question is whether you need the extra electronics at all.
How it compares with passive taps and SPAN
| Option | Best fit | Strength | Trade-off |
|---|---|---|---|
| Powered tap | Inline security appliances, copper links, or links that need signal conditioning | Can support bypass, regeneration, filtering, and aggregation | Needs power and deliberate fail-safe testing |
| Passive tap | Permanent packet capture and compliance-heavy monitoring | Very transparent and simple | Less flexible, and optical designs still need a sound link budget |
| SPAN | Ad hoc troubleshooting or low-cost visibility | Easy to enable on many switches | Best-effort copy that can miss packets under load |
The practical detail people forget is capacity. A 10GbE link can present up to 20Gbps of aggregate bidirectional traffic to the monitoring chain, so the copy path, collector, and storage all need enough headroom. If you size the tool stack only for the headline port speed, you build blind spots into the design before traffic ever hits the wire. That difference becomes more obvious once you map it to actual observability use cases.
Where packet-level observability actually benefits
I reach for packet access when the question is, “What really happened on the wire?” That usually shows up in four places:
- Root-cause analysis when logs and metrics show symptoms but not the mechanism behind them.
- Threat detection when IDS and NDR tools need full packets rather than summarised flow records.
- Performance troubleshooting when retransmissions, MTU mismatch, latency spikes, or microbursts are hiding in the transport layer.
- Compliance and forensics when you need defensible evidence from the source of truth rather than a best-effort mirror.
For UK teams in finance, telecoms, healthcare, or public sector estates, that matters because change windows are tight and the cost of a bad diagnosis is high. I want the monitoring chain to tell me what the network actually carried, not what a dashboard inferred. From there, the real decision is deployment context, because the same device can be overkill in one link and essential in another.
When a powered tap is the right call
In my view, the powered option starts to earn its place when one of these is true:
- The link is copper Gigabit and signal regeneration matters.
- You are inserting an inline security appliance such as an IPS or firewall and need bypass behaviour if power fails.
- The monitoring tool may inject traffic back into the path, so the tap has to handle more than a simple copy.
- You need extra functionality such as filtering, aggregation, or media conversion.
That last point is where the choice becomes operational, not theoretical. A tap that looks perfect on paper can still be the wrong fit if its fail-safe behaviour has never been tested under a real outage. I would always confirm how it behaves when power is removed, how fast it returns to a straight-through path, and whether it preserves the link during maintenance. In a live environment, especially one with short windows and strict change control, that is the difference between visibility and risk.
Common mistakes that turn visibility into noise
The same errors appear again and again, and most of them are avoidable:
- Oversubscribing the monitoring path and then blaming the analysis tool when packets disappear.
- Assuming every tap is interchangeable when the link type, speed, and fail-safe behaviour are different.
- Placing the tap too late in the path, after the problem has already been filtered, aggregated, or altered elsewhere.
- Ignoring link budget and signal integrity on optical runs, which creates a monitoring problem that looks like a network problem.
- Treating packet access as a replacement for logs and metrics instead of one layer in a broader observability stack.
The biggest misconception is that visibility automatically equals insight. It does not. You still need the right capture point, enough downstream capacity, and a tool chain that can make sense of the packets you hand it. If any one of those is weak, the whole setup becomes noisy rather than useful.
The rule I use before I put one in the path
If I need faithful packet visibility on a physical link and I cannot afford best-effort sampling, I start with a tap and choose the powered variant only when the link or the appliance actually needs it. If the environment is virtual, cloud-native, or already covered by enough telemetry for the question at hand, I do not force a physical device into the design.
That is the direction observability has taken in 2026: use packets for ground truth, then layer logs, metrics, and traces around them so each source covers the other’s blind spots. For me, that is the cleanest way to keep monitoring honest without overbuilding the stack. In practice, the best setup is usually the one that gives you the clearest answer with the fewest surprises.
